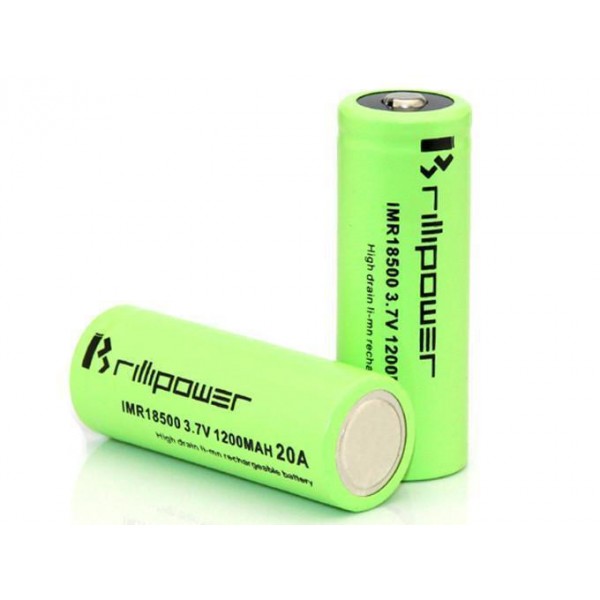

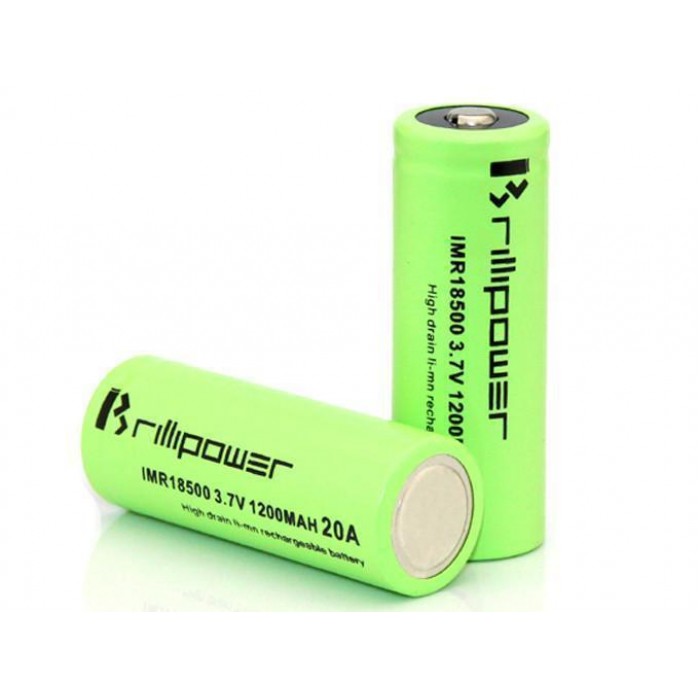

This is the newest IMR18500 high-drain battery. It has a 20A higher discharge rate, 1200MAH higher capacity, and a new design for electronic cigarettes. Enjoy the quality of this battery today.
| 1.0 Nominal Specifications | ||||
| Item | Specification | |||
| Model | IMR18500 | |||
| Nominal Capacity（0.2CA） | 1200 mAh | |||
| Nominal Voltage | 3.70V | |||
| Charging Voltage | 4.2V | |||
| Discharge Cut-off Voltage | 2.75V | |||
| Max. Charge Current | 1 CA | |||
| Max. Discharge Current | 20A | |||
| Cell Dimension | Diameter | 18.3±0.2 mm | ||
| Height | 49.8±0.2 mm | |||
| Cell Weight(Approx.) | 32g | |||
| Initial internal impedance Max, at 1000Hz.） | ≤15 mΩ (Charged) | |||
| Charging Current (CC/CV) | Rapid charge | 0.5 CA×4hrs | ||
| Standard charge | 0.2 CA×8hrs. | |||
| Operating Temperature | Charge | 0℃～60℃（32oF～113oF） | ||
| Discharge | “-20℃~75℃（-4oF～140oF） | |||
| Storage | “-20℃～45℃（-4oF～113oF） | |||
